  • Simple, direct connectivity with core subsurface applications and databases
  • The most dynamic aggregator of data for mapping and surface modeling
  • Powerful spatial data exchange tools
  • Works simultaneously with Windows® and Linux® based applications

The simple and direct connectivity between Petrosys and subsurface applications and databases enables geoscientists to discover opportunities which only become obvious when information from multiple disciplines and datasets are combined. Petrosys is the most dynamic aggregator of data available when mapping and modeling the subsurface.

Connectivity with applications and data stores is superb in Petrosys…

Cross Platform

Petrosys works with Windows and Linux based geoscience applications as well as in-house and hosted databases. Our software engineering team maintains an array of test systems to keep your connectivity aligned with the latest versions of applications and operating systems, reinforcing the long term value of your subsurface applications portfolio.

ArcSDE

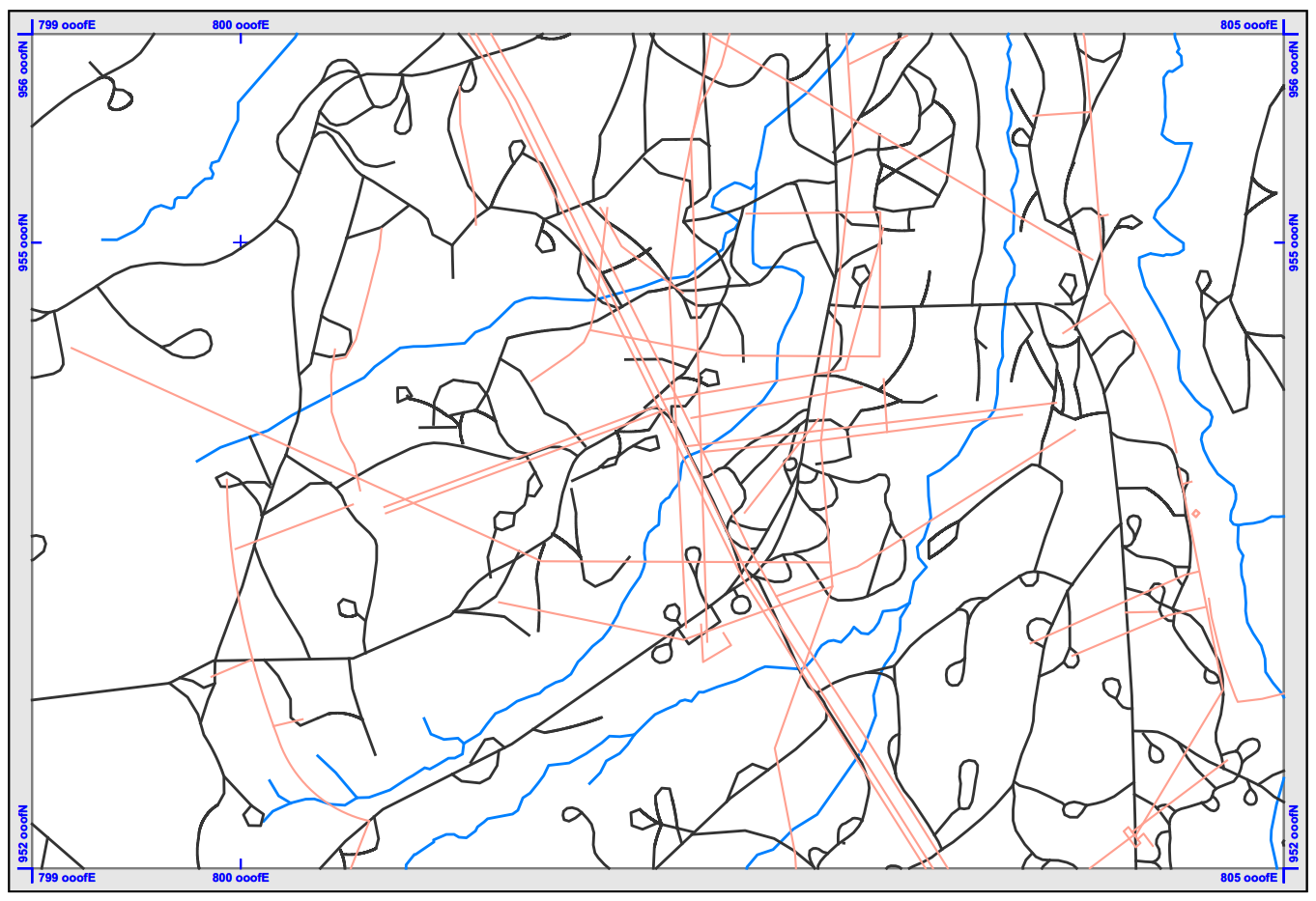

Display roads from an ArcSDE GIS database

Display roads from an ArcSDE GIS database

OpenWorks

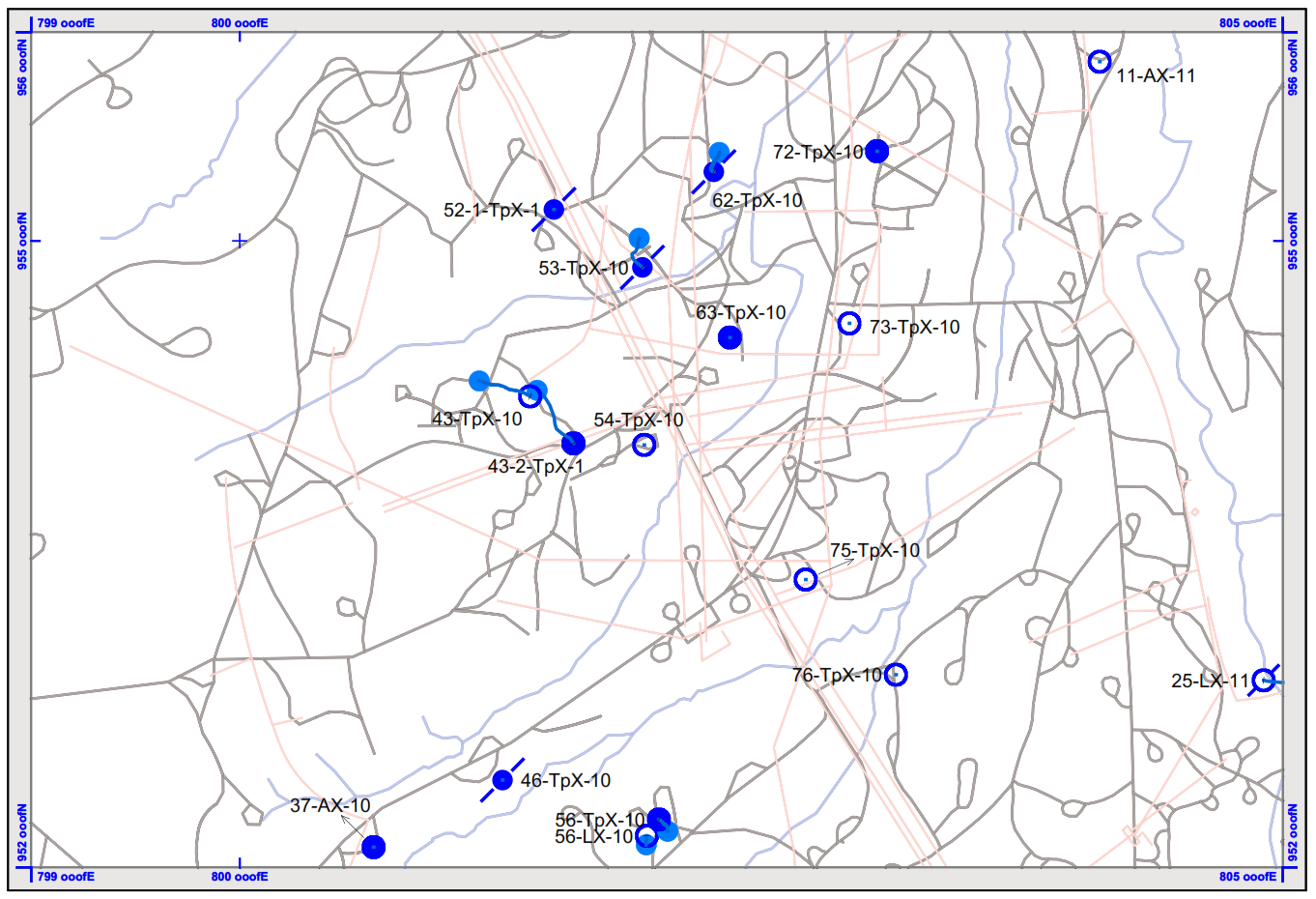

Add well tracks from OpenWorks

Add well tracks from OpenWorks

IHS Kingdom

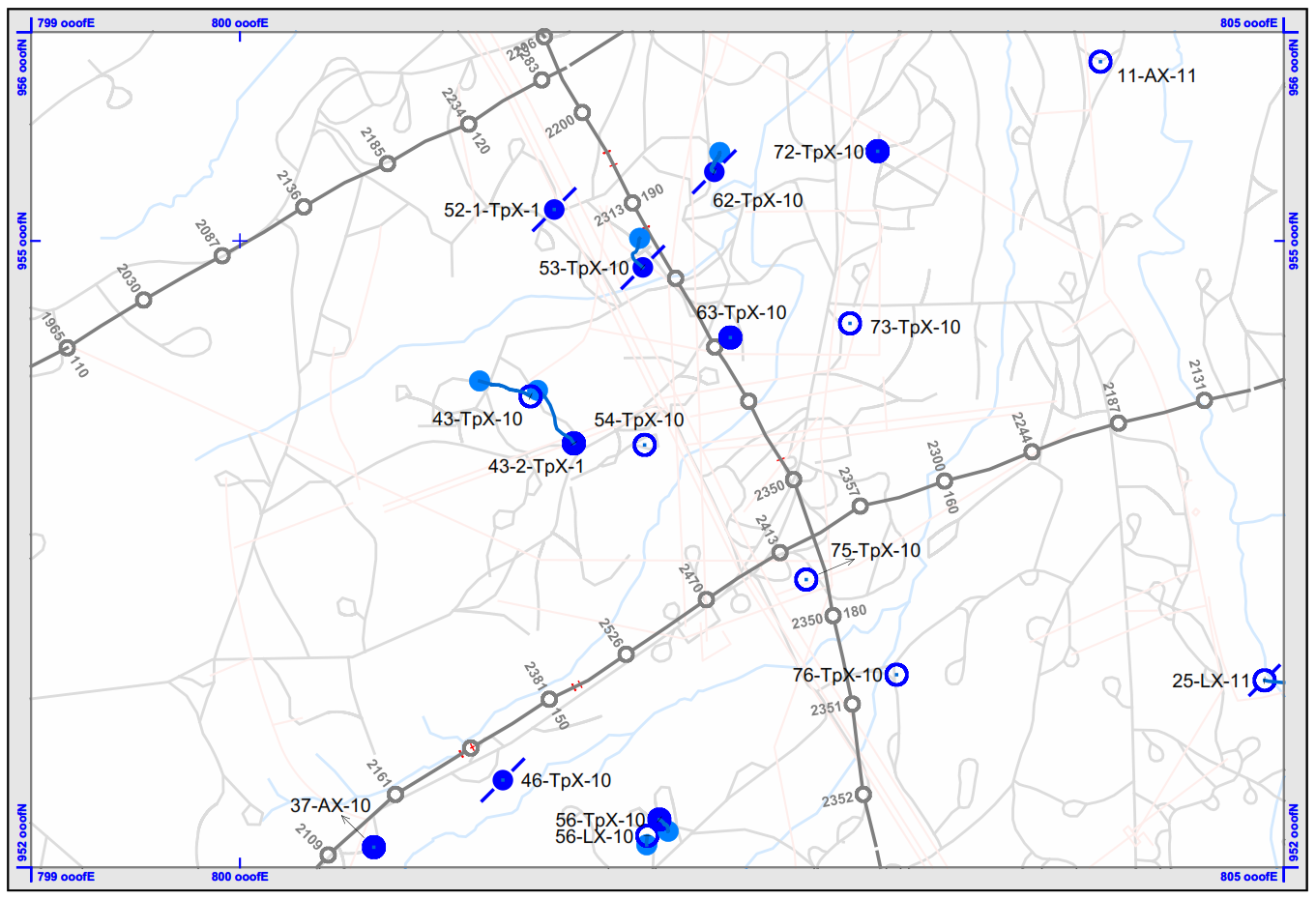

Post 2D seismic data from Kingdom

Post 2D seismic data from IHS-Kingdom

Petrel

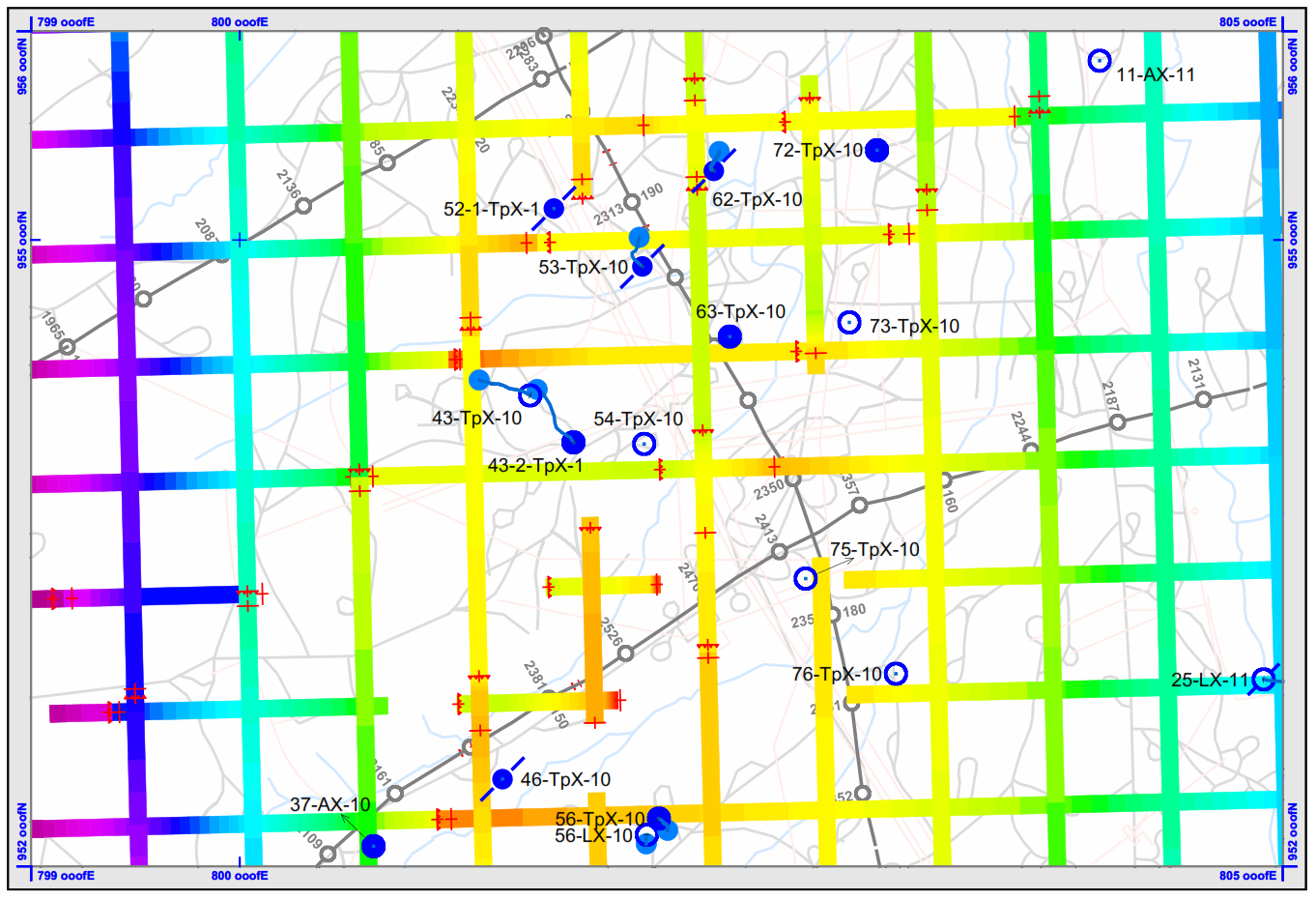

Add 3D interpreted seismic from Petrel as a ribbon map layer

Add 3D interpreted seismic from Petrel as a ribbon map layer

PETROSYS

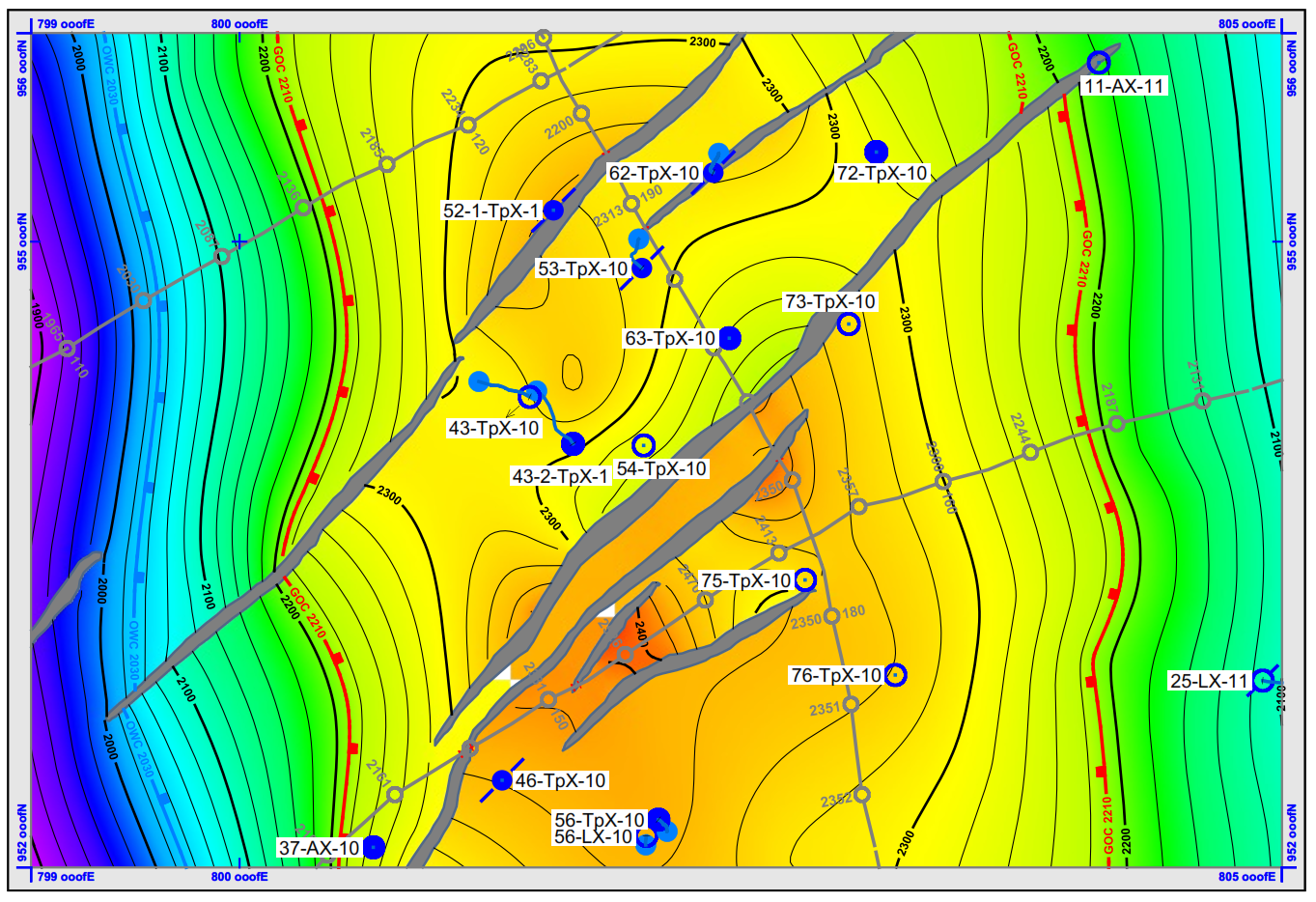

Compute a well tied depth grid with velocities from a Petrosys SDF and display as color fill grid and contours

Compute a well tied depth grid with velocities from a Petrosys SDF and display as color fill grid and contours

WMS

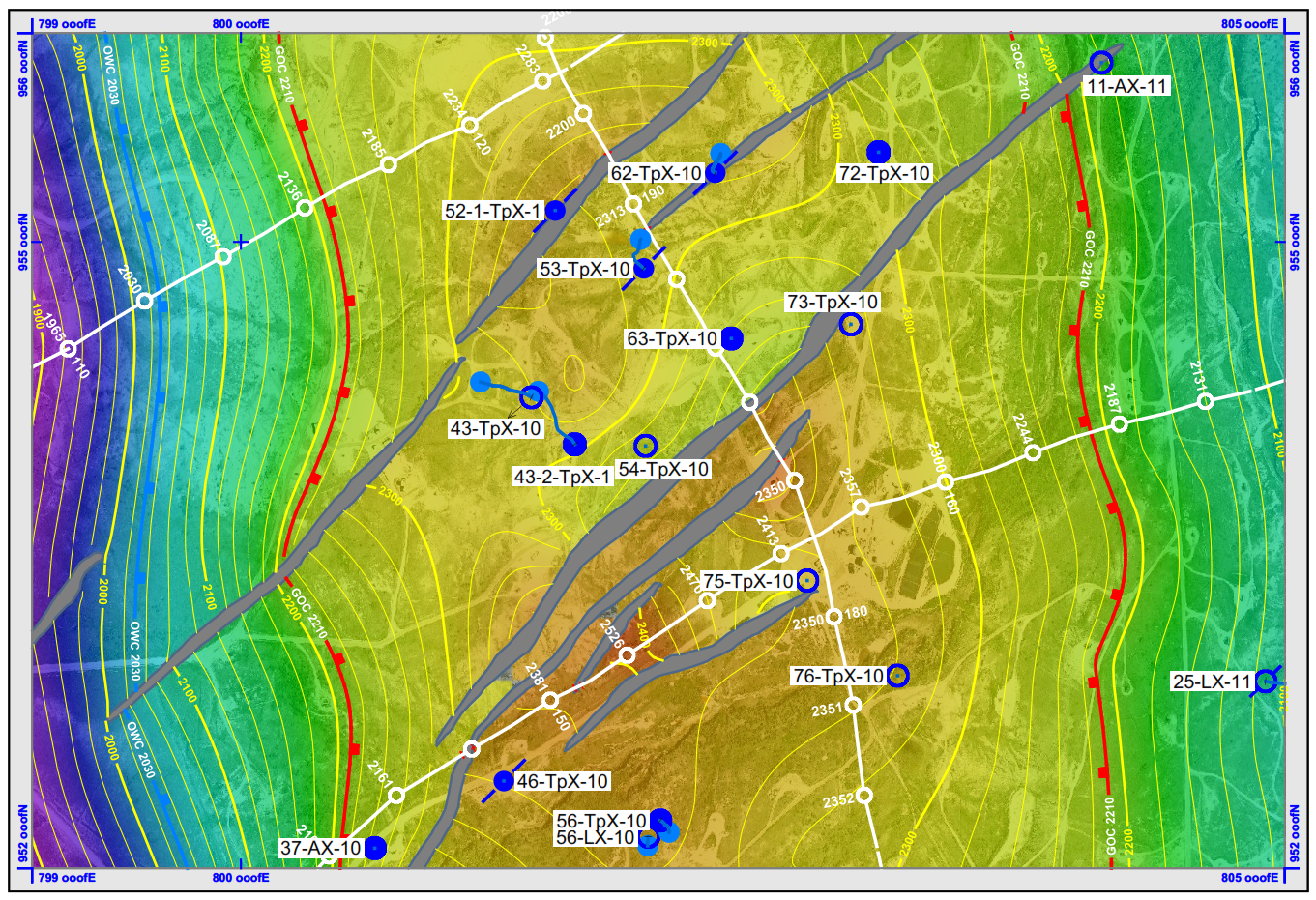

Insert translucent satellite imagery to add current surface facility knowledge

Insert translucent satellite imagery to add current surface facility knowledge

Effective Integration

The data management challenges of project based workflows are reduced by reading subsurface data from its source location in both master and project data stores. With Petrosys, data can be visualised on maps or included as input to surface modeling without the need for third party middleware.

Efficient Task Management

Workflows using data from multiple sources often involve complex import and export operations that are not only time consuming but which also reduce data integrity. Petrosys provides a range of options for accessing information directly. This improves the retention of data integrity whilst simplifying and speeding up operations.

Probably not what you expect – it’s excellent middleware…

Honouring Data

Designed to recognise the source application coordinate reference systems, Petrosys converts data to project specified map CRS on the fly.

When Petrosys throws up a CRS warning on a project connection, we take note – cross-referencing locations has allowed us to identify and correct potentially costly well positioning errors…

Interrogate then Select Data

Create maps, 3D displays and surface models from the latest interpretation data. Query data directly using the map interface and then update surface models.

Customer Focused, Vendor Neutral

Petrosys works with third party development kits to provide direct links to subsurface applications and databases. New links are constantly being added in response to customer requests. As an independent software provider, Petrosys is proud of our collaboration with other leading edge systems developers who continue to provide the E&P industry with the technology it needs. See the supported environments page for up to date information.

Optimise Software License Use

When you have a restricted license pool for an application, or are working on the road, using an offline Petrosys project can provide a useful snapshot of interpretation and other data without incurring new licensing costs.

Share Spatial Data

The Petrosys spatial data translator provides fast easy export of much of the diverse and specialised range of Petrosys map content into more generic spatial formats for use in applications ranging from Petrel through ArcGIS to Google Earth. The Petrosys plugin for Esri also allow viewing of Petrosys grids, contours and faults directly inside of ArcMap.

Petrosys provides the ability to bridge the interpretation and GIS environments.

Capitalize on your Petrel interpretations

The Petrosys plugin for Petrel lets you run Petrosys surface modeling and presentation quality mapping from a Petrel session, bringing together Petrel project data with a range of other project and master data stores to create the informative maps and credible surfaces and volume estimates that are the basis of effective resource development.
